In the past, WEET mainly introduced electrolytic capacitors. In this article, we will explain two resistors with different applications.

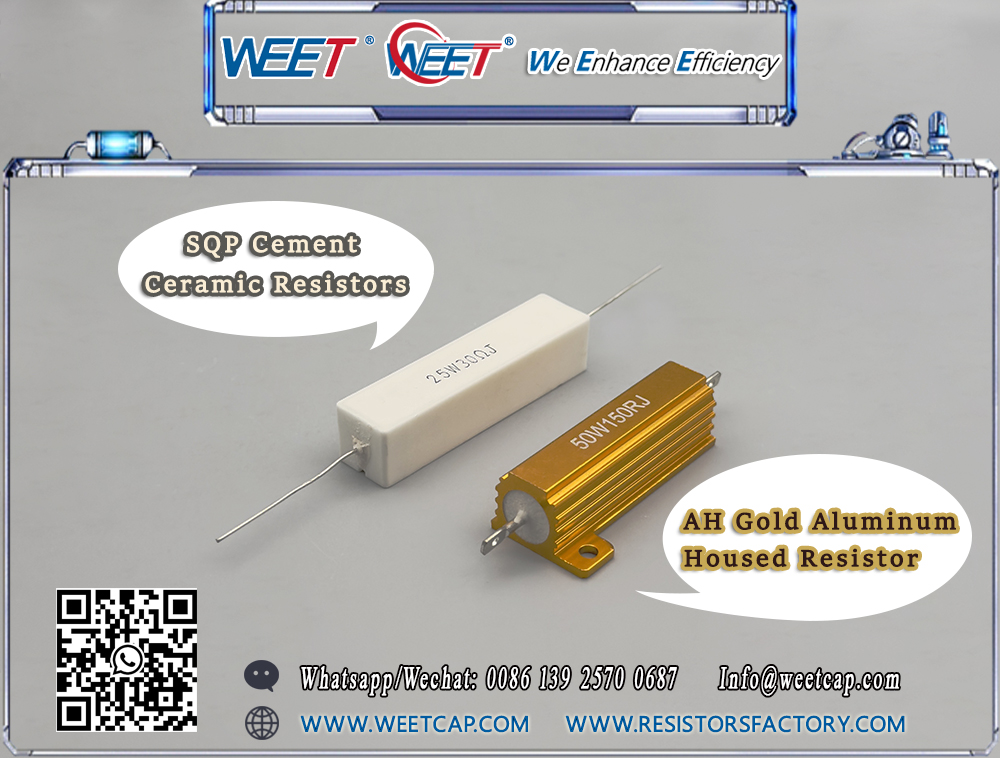

WEET SQP Cement Ceramic Resistors and WEET AH Gold Aluminum Housed Resistor.
Cement ceramic resistors are commonly found in computers, televisions, audio equipment, and other Gold Aluminum Housed Resistor are mainly applicable to vehicles.
The following is a table of two resistors.
| Type | SQP Cement Ceramic Resistors 25W |
| Features | Cement resistors are made by winding a ceramic rod with a metal alloy resistance wire, placing it in a fire-resistant ceramic box, and then using non-flammable and heat-resistant cement concrete for encapsulation. |
| Operating Temp. Range | -55℃~ +155℃ |
| Max. Working Voltage | 500V |
| Max. Overload Voltage | 1000V |
| Value Range | ±5% (Ceramic Core)0.1Ω - 990Ω |
| Type | AH Gold Aluminum Housed Resistor |
| Features | High power rating, small size and ultra precision. |
| Operating Temperature. Range | -55℃ to +275℃ |
| Resistance Tolerance | ±10%, ±5%, ±3%, ±2%, ±1%,±0.5% |
| Wattage Range | 6 styles to choose ranging from 5 to 250 watts |
| Dielectric Strength | AH-5, AH-10, AH-25:1000V; AH-50:1500V; AH-100; AH-250:2500V |
Welcome to consult about more other resistors: https://www.resistorsfactory.com/product/
Why choose WEET?
We are specialized in manufacturing, R&D, Production and Sales of SMD, Axial, Cement, Audio and Power resistor products.
All of our products are RoHS and REACH Compliance, superior quality with competitive price.
WEE Technology Published on Jul 29, 2025
Today, WEET would like to introduce two products to you. They play an important role in industrial circuits and power amplifier audio systems.
WEET SQZ Standing Cement Housed Ceramic Resistor and WEET SQM Radial Cement Housed Ceramic Resistor. They are common electronic components.
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it in a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
| Power Rating 70℃ | SQZ | SQM |
| Operating Temp. Range | -55℃ ~ +155℃ | |
| Temp. Coefficient (PPM) | ±300ppm/℃ | |
| Features | 1. Excellent heat resistance, DAC Amplifier. 2. It can withstand short-term overload, low noise, and the resistance value has not changed over the years. | 1. Excellent heat resistance, low temperature coefficient of resistance and linear change. |
Tap to get additional information:
Please feel free to contact us if you need any assistance!
Contact us:Wallis@weetcap.com
WEE Technology Published on Jul 28, 2025
In audio systems, the CBB19 capacitor is truly a key component for enhancing sound quality.

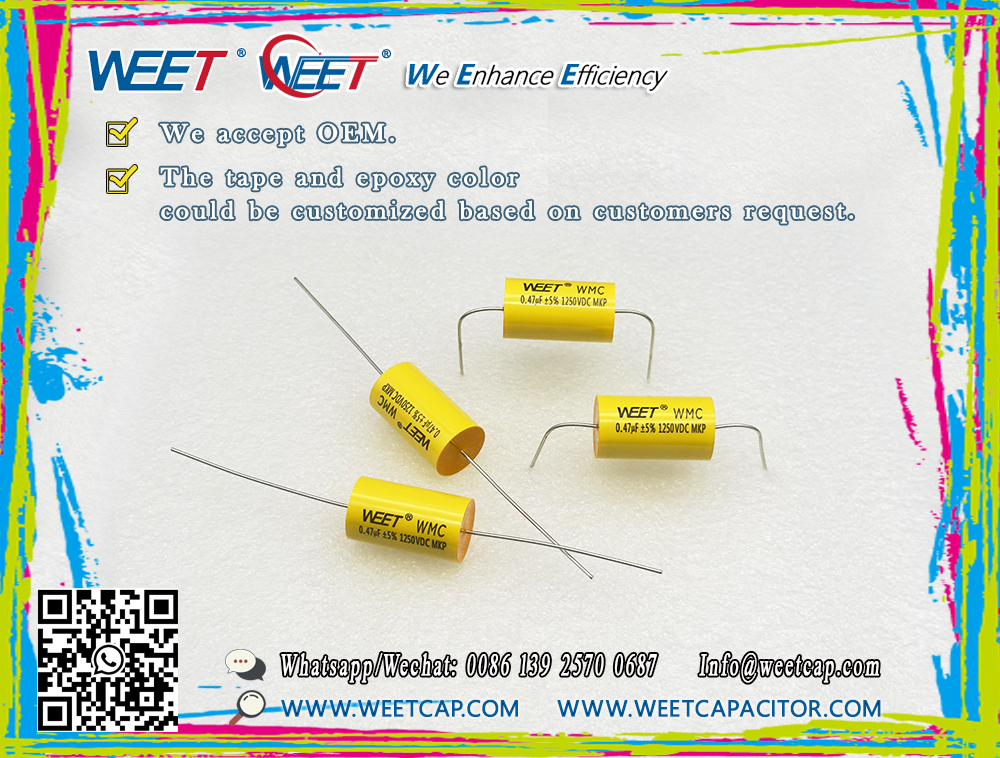

And what I'm going to introduce to you today is the WEET WMC MKP CBB19 Metallized Polypropylene Film Capacitor.
For low-frequency signals, it can make them more profound and full; For high-frequency signals, it can render them clearer and more delicate, reproducing the subtle details in the music.
Specifications:
| Operating Temperature: | -55℃~ +100℃ |
| Rated Voltage: | 250V, 400V, 630V, 1000V, 1250V.DC |
| Features: | High-purity and large-diameter copper oxide tin coated welding at both ends as the lead, wrapped with flame retardant tape and sealed with epoxy resin. |
| Advantage: | It has excellent electrical performance, high reliability, high temperature resistance, small volume, large capacity and good self-healing performance. |
Special note:
For 1250V, we adopt different series construction to assure the high voltage.
The tape and epoxy color could be customized based on customers request.
We accept OEM, please feel free to check with our sales engineers for more details.
Contact us:Wallis@weetcap.com
WEE Technology Published on Jul 25, 2025

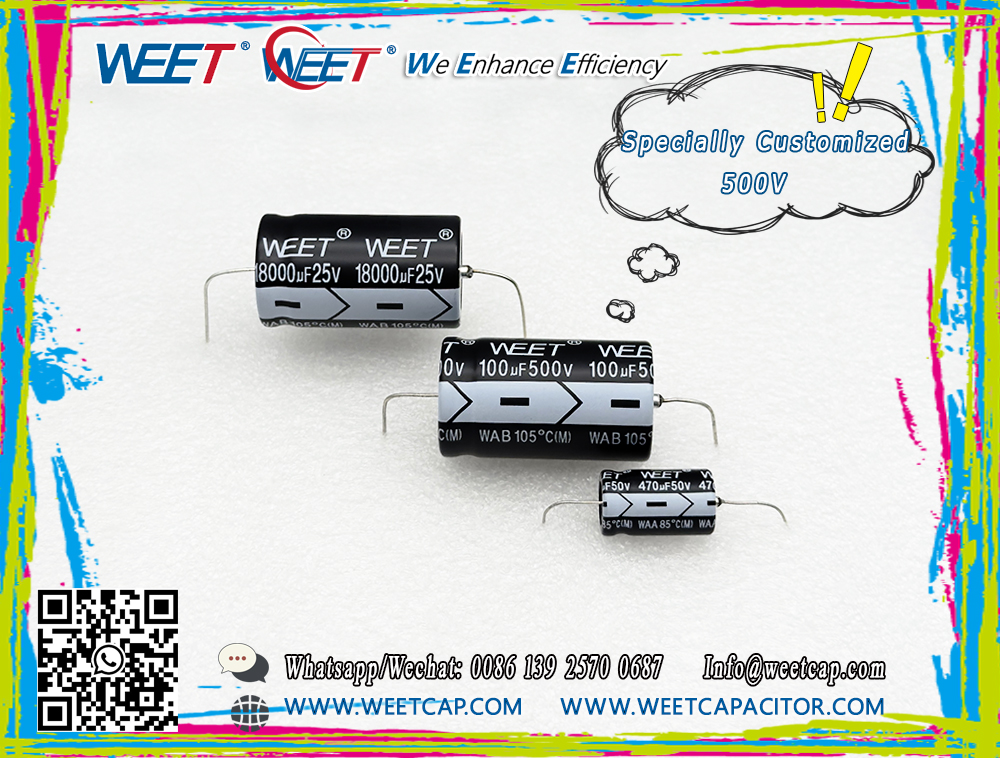

Today, WEET would like to introduce a Super-low voltage Polarized Aluminum Electrolytic Capacitors to everyone, WAB and WAA.
To meet the needs of customers, it should be noted that WAB series can be specially customized for customers with 500V option.
Series | WAB | WAA |
Rated Voltage: | 6.3V ~ 500V | 6.3V ~ 450V |
| Capacitance Range: | 1uF ~ 4700uF | 1uF ~ 10000uF |
| Operating Temperature: | -40℃ ~ +105℃ | 40℃ ~ +85℃ |
Capacitance Tolerance: | ±10%(K), ±20%(M) | ±10%(K), ±20%(M) |
| Features: | Load life of 1000 hours at 105°C | Load life of 2000 hours at 85°C |
Explore more information:
Summary:
If you have any needs, please feel free to contact us at any time. We will be dedicated to providing you with professional services and customizing the most cost-effective exclusive solutions based on your actual situation.
If you need samples, we can also apply to send them to you for free, allowing you to intuitively understand the product quality!
Contact us:Wallis@weetcap.com
WEE Technology Published on Jul 24, 2025

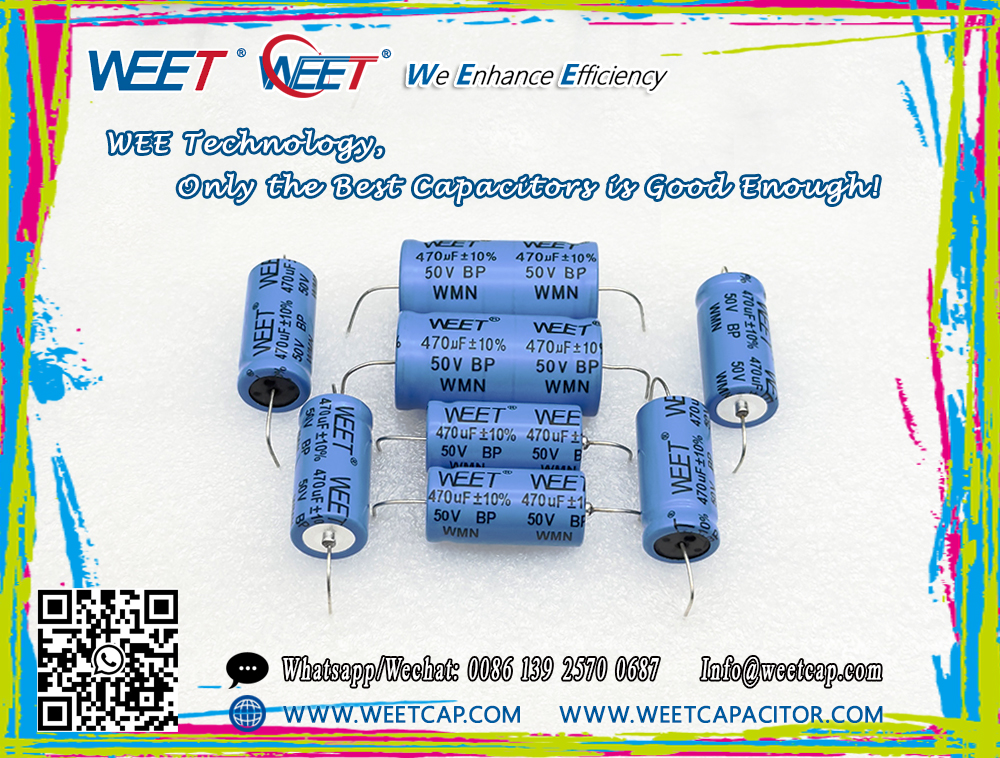

WMN BP Axial Bi polar Aluminum Electrolytic Capacitors, a capacitor specifically designed for audio systems with a blue appearance.
WMN BP Axial Bi polar Capacitors is specially tailored for audio systems. If you own headphones, or have speakers or a home theater system, this capacitor is definitely an indispensable choice for you.
Now WEET give you a brief overview of the specifications of this capacitor.
| Rated Voltage: | 50V, 100V.DC |
| Operating Temperature: | -40℃~+105℃ |
| Capacitance Range: | 47uF ~ 1000uF |
| Features: | Low Dissipation Factor, MAX 5% at 120Hz, Bi-Polarized, 105℃ 1000 hours. |
| Cross Reference: | Popular Items cross reference to Visaton brand. |
If you have any needs, we will be happy to apply for a free sample delivery for you. After experiencing it in person, we believe you will be even more certain that choosing us is an absolutely wise decision!
Contact us:Wallis@weetcap.com
WEE Technology Published on Jul 23, 2025
When you put on headphones and listen to the delicate voice of a singer, you may never have thought that there is a small electronic component silently working behind the scenes - it is BP Axial Bi polar capacitor.

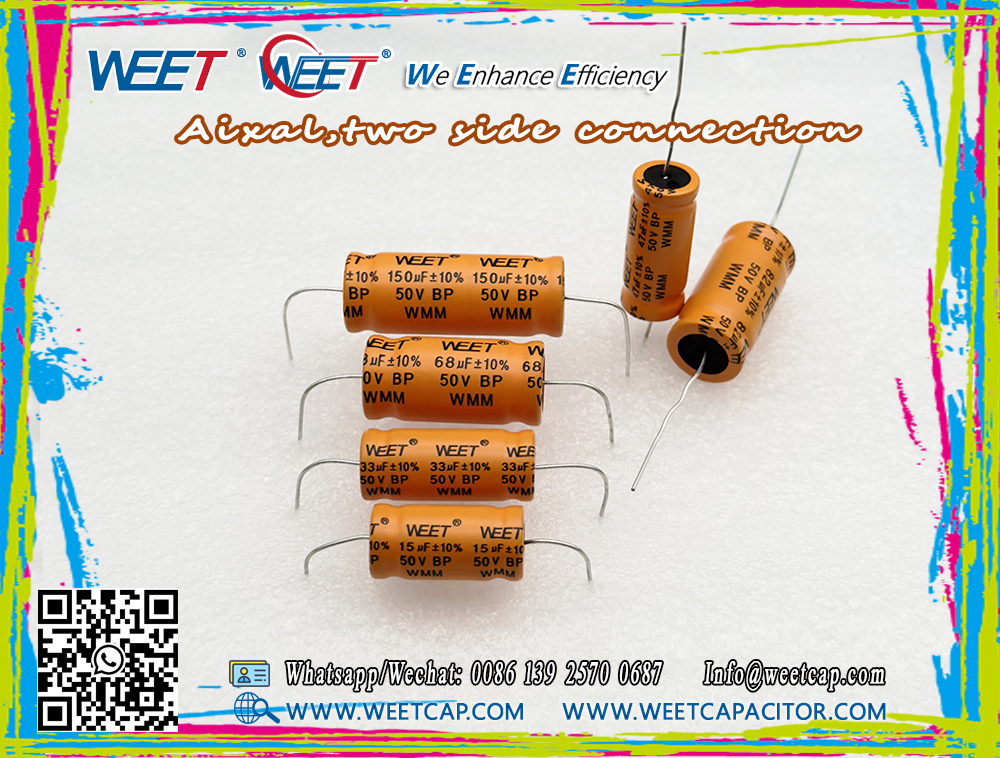

Today, I will bring you an introduction about WEET WMM BP Axial Bi polar Aluminum Electrolytic Capacitors.
The following table is some date about WEET WMM Capacitor:
| Capacitance Range: | 1uF ~ 150uF |
| Operating Temperature: | -40℃~+105℃ |
| Rated Voltage: | 50V, 100V.DC |
Features: | Low Dissipation Factor MAX 5% at 1KH, Bi-Polarized, 105℃ 1000 hours. High-quality crossover non-polar aluminum electrolytic capacitors. |
| Three wiring types: | 1. Axial, two side connection 2. Axial, one side connection 3. Radial connection |
| Main Applications: | Specially produced for Cross-Over Networks with high fidelity audio system. Product mainly used in Audio Converters and Dividers (partials), Automotive Electronics Products, Audio amp, speaker and so on. |
Why Choose WEET?
The following content is real feedback from customers:https://www.enjoyen.com/
" I received all items in perfect condition a week ago. I did some tests on WMM series and they perform very well, much better than the Visaton brand."
--- Comment by Stanislav Nadelyaev from Russia.
WEE Technology Published on Jul 22, 2025
WEET WMK BP Axial 1KHZ Smooth Foil Aluminum Electrolytic Capacitor, an electrolytic capacitor mainly used in audio and speaker systems.
Introduction:
The WMK is made with a smooth foil to allow for low loss.
Specially produced for Cross-Over Networks with high fidelity audio system.
Smooth electrolytic capacitors (E Cap plain) are made from unetched and thus lower-loss films.
Operating Temperature: -40℃~+105℃.
Capacitance Range: 1uF ~ 15uF.
Detailed Information: WEET WMK PDF
We offer three customization options to meet customers' unique needs. Axial, two side connection. Axial, one side connection and radial connection.
Please click here to view the product drawing: WEET WMK Product Drawing
Cross Reference:
Mundorf E-Cap PLAIN MLytic Audio Cap • Smooth • ACW Audio Grade Bipolar Electrolytic Capacitor.
Summary:
If you have any needs, please let us know your requirements. Each customer will have one chance to receive a free sample delivery!
Contact us:Wallis@weetcap.com
WEE Technology Published on Jul 21, 2025

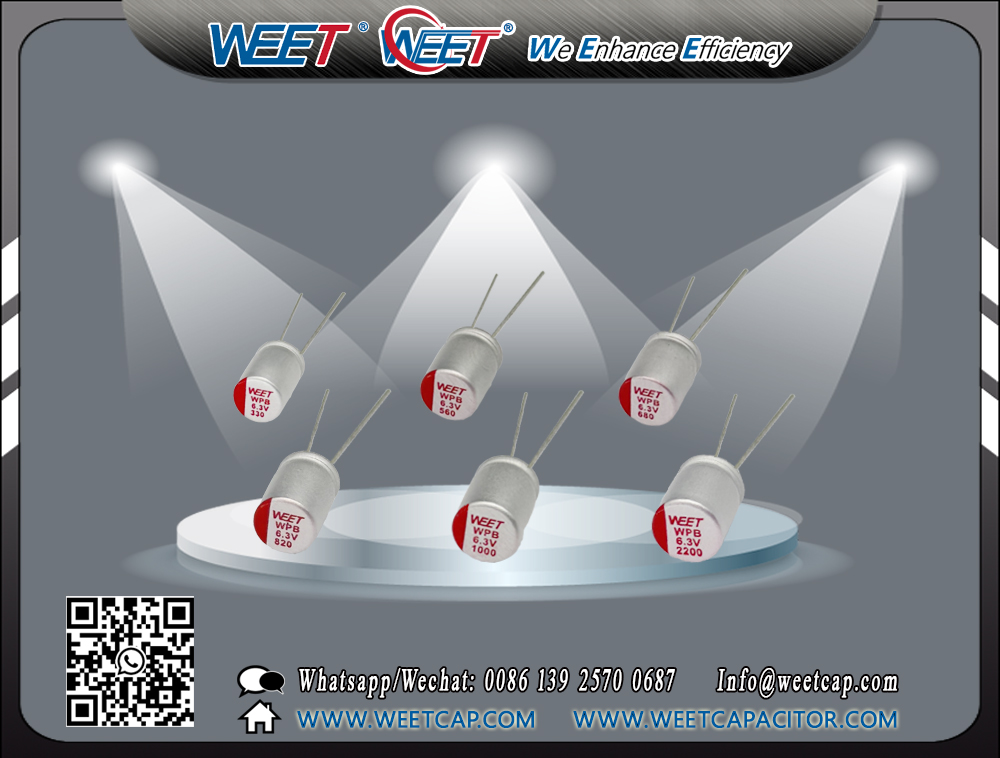

WEET WPB Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors, a product that brings convenience to life.
Three reasons to choose radial polymer aluminum solid electrolytic capacitors:
Performance surpasses traditional solutions:
High-frequency loss is reduced by 70%, service life is extended by 5 times, and volume is reduced by 50%.
Safe, reliable and free from hidden dangers:
The solid structure eliminates the risk of liquid leakage and explosion, making it especially suitable for key fields such as medical equipment and aerospace.
Contribute to green and sustainable development:
No harmful chemicals, in line with RoHS standards.
Take action now to seize the technological first-mover advantage:
Visit WEET's official website to apply for free samples and experience the innovative power of solid-state energy storage.
Official website:https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/
Contact WEET's technical experts to obtain customized solutions and make your products stand out in the competition.
Contact person:Wallis@weetcap.com
WEE Technology Published on Jul 18, 2025
Are you still looking for the right capacitor?
If you need it for applications such as DC/DC converters, AC/DC converters, mobile phone chargers, or computer motherboards, then this article of WEET can help you.
Radial polymer aluminum solid electrolytic capacitors (Through Hole Aluminum Organic Polymer Capacitors), feature is large allowable ripple current, high frequency, and low ESR.

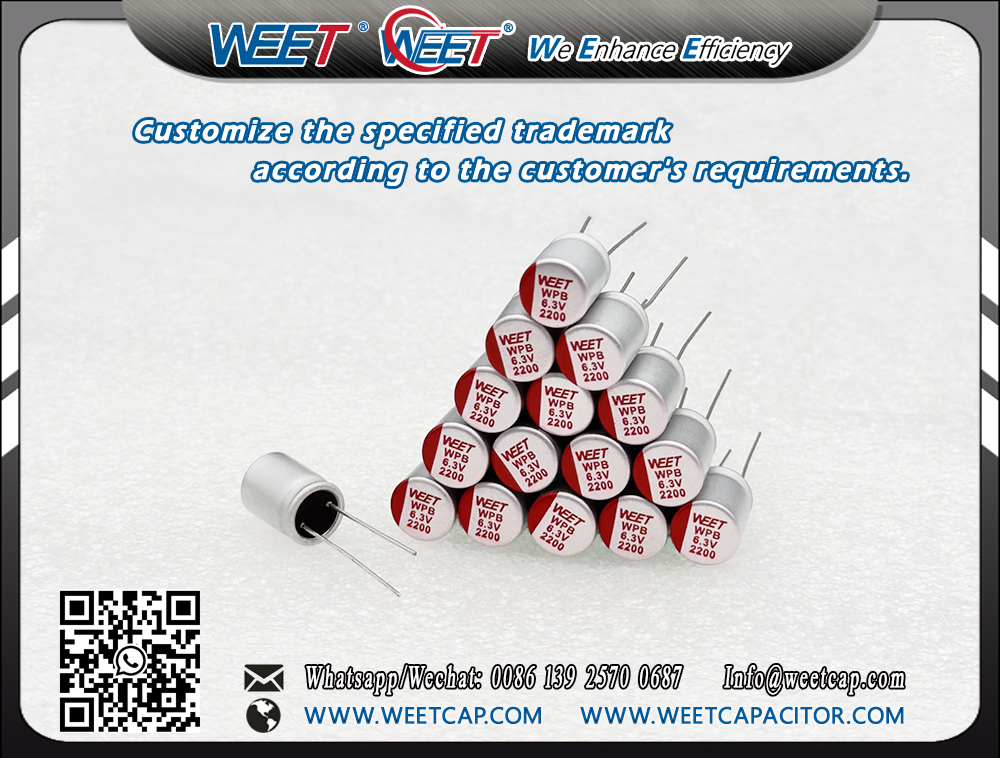

We can customize the specified trademark according to the customer's requirements.
If you have any needs, please feel free to contact us without hesitation!
Here is one of WEET WPB radial polymer aluminum solid capacitors.
| Series | Rated Voltage | Rated Capacitance (µF) | ESR (mΩ) at 20℃, 100 KHz | Leakage Current (µA) | Rated Ripple Current(mArms/105℃/100kHz) | Case Size ΦDxL (mm) |
| WPB Radial Polymer Aluminum Solid Electrolytic Capacitor | 6.3 | 2200 | 8 | 2772 | 6220 | 10*12.5 |
For more detailed information, please visit our official website:https://www.weetcap.com/Aluminum-Electrolytic-Capacitors/WEET-WPB-Super-Low-ESR-Radial-Polymer-Aluminum-Solid-Electrolytic-Capacitors.html
WEE Technology Published on Jul 17, 2025
I think you must have heard of Radial solid aluminum electrolytic capacitors, but did you know it can be used in mobile phone chargers?
The following table will give you a better understanding of it:
| Operating Temperature: | -55°C ~ +105°C |
| Capacitance Range: | 68μF ~ 2200μF |
| Leakage Current (+20℃, max): | ≤0.2CV (μA, after 2 minutes) |
| Features: | Large permissible ripple current. Low ESR at high frequency range. |
| Main Applications: | DC/DC converters and AC/DC converters, communication power supply, set-top boxes, router, TV, voltage regulator, mobile phone adapter (mobile phone charger), computer motherboard, graphics card, power supplies, CPU's and LCD Monitors. |
Click on the image to view the PDF file:
Radial solid aluminum electrolytic capacitors, one of the best-selling in our capacitor product.
Should you have any requirements, please kindly inform us of your specific needs, and we will tailor a most favorable solution exclusively for you.
Contact us:Wallis@weetcap.com
WEE Technology Published on Jul 16, 2025
