Ultra high voltage axial thin film capacitor, this 0.00025uF 12.5KV through-hole capacitor stands out in high voltage applications with its outstanding performance.
High voltage endurance: This capacitor can withstand DC voltages up to 12500V DC, making it an ideal choice for fields such as high-voltage power supplies, power electronics equipment, and medical devices.
Low loss: The low loss and internal resistance of metalized thin film axial capacitors ensure their stable operation at high efficiency, even under high voltage.
Long lifespan: Due to its superior design and materials, this capacitor has a long service life and can maintain stable performance under long-term high-voltage working conditions.
Stability performance: The temperature and frequency stability of metalized thin film axial capacitors make them excellent and reliable in high-voltage and high-frequency applications.
Overall, the advantages of ultra-high voltage metalized thin film axial capacitors include high voltage endurance, low loss, long lifespan, and stability performance, making them an ideal choice for handling high voltage applications.
For capacitive divider power supply circuit only contains a few simple components, so its structure is simple and reliable. In this circuit, the most important electronic component is the resistive capacitive buck capacitor. Should the capacitive divider power supply capacitor be an X2 capacitor or a CBB capacitor?
The answer is: X2 capacitors and many CBB capacitors can be used as resistance capacitance step-down capacitors.
X2 safety capacitor specifically designed for capacitive divider power supply
X2 capacitors are mainly used to suppress electromagnetic interference from power sources. Ordinary X2 capacitors cannot be used as resistance capacitance step-down capacitors, otherwise there will be problems such as rapid capacity decay and extremely short service life.
1, If you want to use it in capacitive divider power supply circuits, you must use WFC-A series capacitors specifically designed for resistive capacitive divider.
The X2 safety standard capacitor for resistive capacitive voltage reduction is a type of capacitor used in resistive capacitive voltage reduction circuits, which has excellent electrical and stability performance. This type of capacitor usually uses high-quality dielectric materials and electrode materials, which have the characteristics of high withstand voltage, low loss, good stability, long service life, and comply with safety standards, with safety and reliability.
2. CBB22 capacitor specifically designed for resistive capacitive voltage reduction.
In order to avoid oxidation of the metal coating caused by high voltage communication, the CBB22 capacitor specifically designed for resistive capacitive voltage reduction uses different metal thin films, which can significantly slow down the decay rate of the capacitance value. At the same time, the production process is more complex and must be carried out in a constant temperature and humidity workshop to reduce the water content of the production environment and minimize the adsorption of moisture by the product. The zinc aluminum film capacitor core is immediately sealed after heating up, and the product temperature is increased while being evacuated and cured.
3. MPB box capacitors specifically designed for capacitive divider power supply
This type of capacitor is similar to the CBB22 capacitor, with the same internal capacitor core, except that the MPB capacitor has better performance and longer lifespan.
X2 safety capacitors are mainly divided into two types: one is anti power electromagnetic interference, and the other is resistance capacitance voltage reduction. Today, we will focus on introducing the X2 safety capacitors specifically designed for resistance capacitance voltage reduction.
The X2 safety capacitors used for voltage reduction and the capacitors used for anti-interference, although both are made by winding metalized polypropylene film, still have certain differences in their internal composition,
The main adjustment is to adjust the zinc aluminum ratio of the metal film, and at the same time, the resistance capacitance voltage reduction X2 safety capacitor adopts a double 85 characteristic metalized polypropylene film and epoxy resin cured sealing adhesive.
This is used in resistive capacitive buck circuits, which means that the capacity decay is smaller and the lifespan of the capacitor is longer
Can ordinary anti-interference X2 capacitors be used in resistive capacitive buck circuits? Indeed, there have been some customers who are not familiar with X2 capacitors and directly use ordinary X2 capacitors for anti-interference in resistive capacitive voltage reduction circuits. The result is that their capacity decays quickly. After a few months of use, due to the severe capacity decay of X2 capacitors, the power supply to the resistive capacitive voltage reduction circuit is insufficient, and the electrical appliances cannot be used normally.
What are the characteristics and functions of the X2 capacitor for resistive capacitive voltage reduction? We call the optimized series X2 certified AC safety capacitors for resistance capacitance voltage reduction. They use polymer polypropylene film dielectric, thickened metalized electrodes, fully automatic spray welding process, 94V0 flame-retardant PBT plastic shell, moisture resistant epoxy resin sealing, and CP wire lead out. High voltage resistance, moisture and heat resistance, low capacitance drop, specifically designed for resistive capacitive voltage reduction circuits, such as LED driver modules, electric meters, small household appliances and other low-power electronic consumer products.
Reminder: When choosing X2 capacitors in the future, it is important to clarify whether they are used for anti-interference or resistive capacitive voltage reduction applications. If using resistive capacitive voltage reduction circuits, X2 safety capacitors specifically designed for resistive capacitive voltage reduction must be used, otherwise the circuit is prone to problems.
X2 safety capacitors are commonly used in power circuits to suppress electromagnetic interference. They are installed between the live and neutral wires of the power supply to filter out high-frequency noise, ensure the stability of the power supply, and reduce the potential impact of electromagnetic interference on other electronic devices.
In fact, X2 safety capacitors can be further divided into many types. Taking the WFC-A series X2 safety capacitors from WEET as an example, they can be divided into suppression of power electromagnetic interference type, PD fast charging dedicated type, resistance capacitance voltage reduction dedicated type, double 85 type, moisture-proof type, etc.
In what occasions are moisture-proof X2 safety capacitors used?
This X2 capacitor is suitable for capacitor voltage reduction circuits connected in series with power sources, such as smart meters, LED power supply modules, and other harsh application environments.
What are the characteristics of moisture-proof X2 safety capacitors?
1. The capacity attenuation is extremely small.
Compared with the anti-interference X2 capacitor, our moisture-proof X2 capacitor has less capacity attenuation and can be used in harsh environments such as high temperature and high humidity for a long time with excellent capacity stability.
The moisture-proof X2 capacitor was designed with long-term stability in mind, with minimal capacity decay and the ability to provide stable performance throughout the entire lifespan of the device.
2. Capacitors have self-healing properties and can withstand surge voltage impacts.
3. Excellent flame retardancy and better high-temperature resistance.
4. Better high temperature resistance. The moisture-proof X2 safety capacitor can operate stably in high temperature environments, and its design considers performance maintenance at high temperatures to ensure that there will be no performance degradation or capacity degradation under long-term high temperature loads.
5. Better moisture resistance.
Due to the fact that some electronic devices may be used in humid environments, these capacitors typically have good moisture resistance and can maintain stable electrical characteristics in high humidity environments.
WEET Characteristics of THB series X2 safety capacitors Cross TDK B3293 - X2 Heavy Duty Series Safet
What are the differences between THB type X2 safety capacitors and regular X2 capacitors
For X2 safety capacitors, those who are not familiar with them believe that their function is to suppress power electromagnetic interference. In fact, X2 capacitors have many usage scenarios, some of which do not require high performance, but some require strict performance from X2 capacitors. Strong capacitor manufacturers, such as WEE Technology, will classify WFC-A X2 capacitors into anti-interference type, resistance capacitance voltage reduction type, THB high temperature resistance, high humidity type. What are the differences between THB X2 safety capacitors and ordinary X2 capacitors? What is THB type X2 safety capacitor?

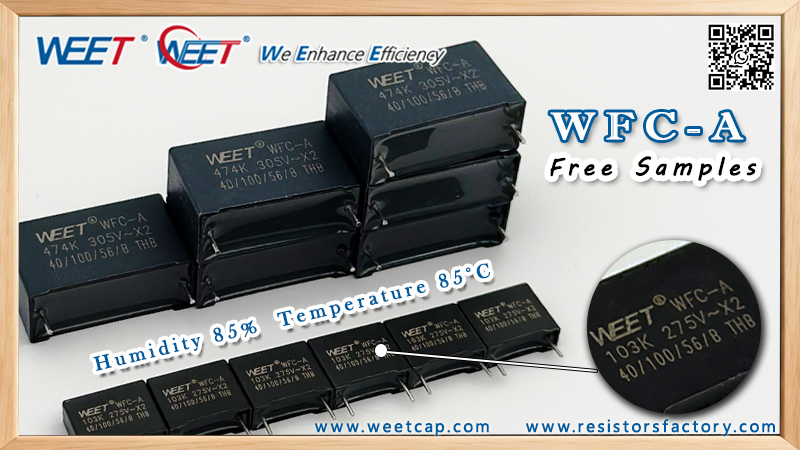

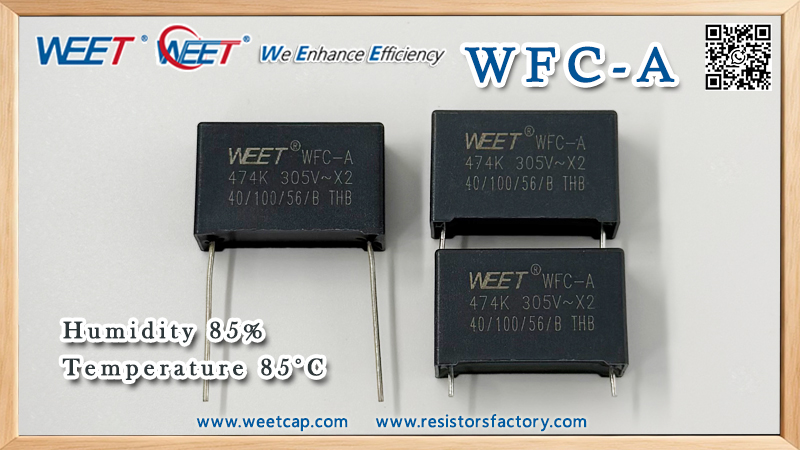

Simply put, it means that WFC-A can pass the THB 1000h dual 85 test, also known as the dual 85 capacitor.
https://www.weetcap.com/Plastic-Film-Capacitors/WEET-WFCA-THB-X2-85C-Metallized-Polypropylene-Film-Capacitor-275V-305V-310VAC.html
This test may seem simple, but for X2 safety capacitors, it is still difficult to pass because the two biggest factors affecting the lifespan of X2 capacitors are high temperature and humidity. Working in such an environment, ordinary X2 safety capacitors will quickly break down and have a short lifespan.
Some electrical appliances are used in harsh environments, such as smart meters used outdoors, which may face high temperatures and humidity. In this case, THB type X2 safety capacitors must be used.
Characteristics and functions of THB type X2 safety capacitor:
Optimized series X2 certified type, using polymer polypropylene film medium, thickened metalized electrode, fully automatic spray welding process, 94V0 flame retardant PBT plastic shell, moisture resistant epoxy resin sealing, CP wire lead out. High voltage resistance, moisture and heat resistance, low capacitance drop, specifically designed for resistive capacitive voltage reduction circuits, such as LED driver modules, electric meters, small household appliances and other low-power electronic consumer products. The product can pass the THB1000h dual 85 test.
Compared to ordinary X2 capacitors, it has better high temperature resistance and high humidity performance, but the disadvantage is that the price will be slightly higher.
Safety capacitors are mainly capacitors that require safety certification before they can be used. Currently, the main safety capacitors are: X1 safety capacitor, X2 safety capacitor, and Y1 and Y2 safety capacitors. Some people want to know if x2 is a safety capacitor?
The answer is affirmative: X2 is one of the safety capacitors, and its usage is particularly large. Although X1 is also a safety capacitor, its usage is relatively small. There are actually many types of X2 safety capacitors, and different types of X2 capacitors have very different functions. Below we will introduce them one by one:
1. X2 safety capacitor for suppressing power electromagnetic interference
This is the most typical use of X2 capacitor, which is commonly used to suppress power electromagnetic interference. It mainly uses polymer polypropylene film dielectric, thickened metalized electrode, fully automatic spray welding process, 94V0 flame retardant PBT plastic shell, epoxy resin sealing, high voltage resistance, and strong transient pulse voltage withstand ability. Widely used in power supply parallel cross line circuits to suppress electromagnetic interference.
2. X2 safety standard capacitor for capacitive divider power supply
Another common function of X2 capacitors is to reduce voltage through resistance and capacitance. In some small home appliance controls and smart meters, using capacitors for voltage reduction is simpler and more cost-effective than using transformers. X2 capacitors are specifically designed for resistance and capacitance voltage reduction circuits, using polymer polypropylene film dielectric, thickened metalized electrodes, fully automatic spray welding technology, 94V0 flame-retardant PBT plastic shell, moisture resistant epoxy resin sealing, and CP wire lead out. High voltage resistance, moisture and heat resistance, low capacitance drop, specifically designed for capacitive divider power supply circuits, such as LED driver modules, electric meters, small household appliances and other low-power electronic consumer products.
3. Double 85 type X2 safety capacitor, X2 Heavy Duty Series Safety Capacitors
The double 85 X2 capacitor is also used for resistance capacitance voltage reduction, but its performance is better and can pass the THB1000h double 85 test. It is used in some circuits with harsh operating environments, such as smart meters, which are mainly used outdoors to withstand high temperature and high humidity environments. Therefore, the double 85 X2 capacitor must be used. It has high voltage resistance, moisture resistance, and low capacitance drop, and is specifically designed for resistive capacitive voltage reduction circuits, such as LED driver modules, electric meters, small household appliances, and other low-power electronic consumer products. The product can pass the THB1000h dual 85 test.

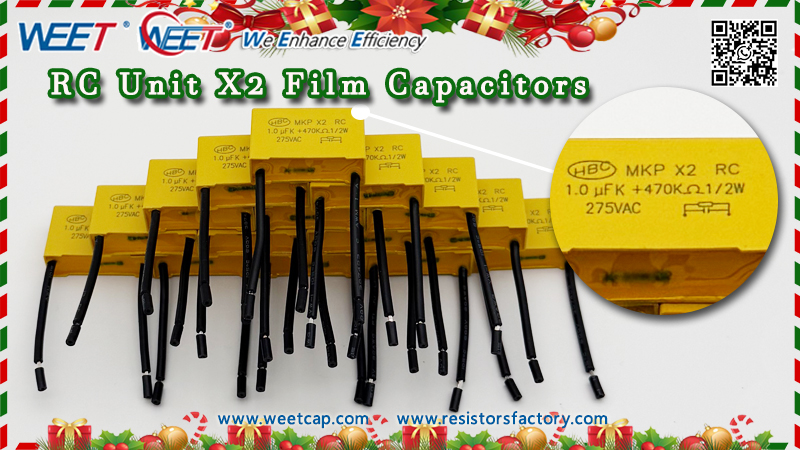

4. RC parallel and series X2 capacitors
This type of X2 capacitor has a unique internal structure, with a resistor connected in parallel or series. The RC parallel type X2 capacitor is composed of an internal parallel connection between the X2 capacitor and the discharge resistor, and has excellent flame retardant performance. Widely used in anti-interference applications such as power lines. The RC series X2 capacitor has good noise suppression, energy peak absorption, and damping effects.

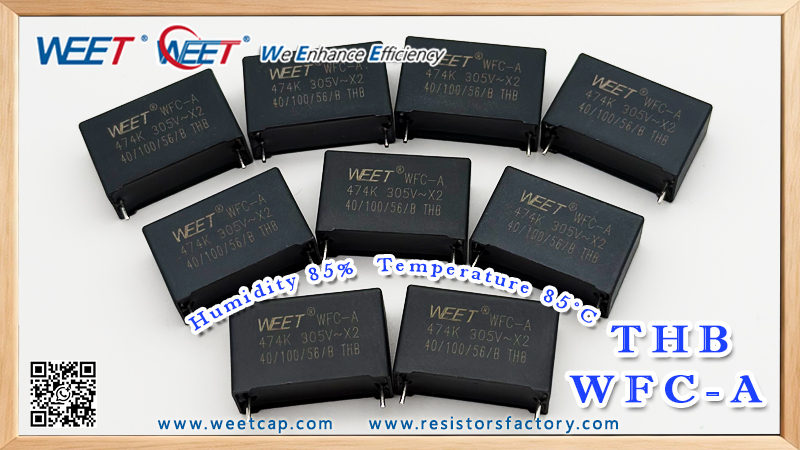

The X2 capacitor of the THB series is specifically designed for capacitive divider circuits connected in series with 100-240VAC power supplies, such as electric meters, LED driver modules, etc. Its biggest advantage is smaller capacity attenuation, better resistance to high temperatures and humidity, and significantly better performance than ordinary anti-interference X2 safety capacitors.
THB MKP-X2 Polypropylene Film Capacitors for EMI Suppression (THB Grade IIIB: 85C, 85% R.H., 1,000h)
High stability of capacitance under sever ambient condition, such as high temperature and high humidity
1. Internally wrapped with metalized polypropylene film.
2. Excellent self-healing performance, able to withstand surge voltage impact.
3. Excellent capacitance stability under long-term load, with significantly less capacity decay, and longer lifespan when used in capacitive divider power supply circuits.
4. Excellent moisture resistance, high humidity resistance, and can also be used in some harsh environments.
5. Excellent flame retardant performance.
6. Excellent capacity stability for long-term application in harsh environments such as high temperature and humidity.
In summary: THB series X2 safety capacitors belong to the optimized series X2 certification type, using polymer polypropylene film dielectric, thickened metalized electrodes, fully automatic spray welding process, 94V0 flame retardant PBT plastic shell, moisture resistant epoxy resin sealing, and CP wire lead out. High voltage resistance, moisture and heat resistance, low capacitance drop, specifically designed for capacitive divider power supply circuits, such as LED driver modules, electric meters, small appliances and other low-power electronic consumer products. The product can pass the THB 1000h 85C test.
WFT Features
WEET WFT High Voltage Metallized Polypropylene Film Capacitors For Power SupplyMetallized polypropylene film wound.
Non-inductive construction the polyester tape or specific tape wrap and epoxy resin end filled,
Excellent self-hearing property and temperature stability,
Copper solder tags, copper screw, copper nut and others are available on request.
Main Applications
Mainly used high voltage converter super high voltage power supply, high voltage coupling and carrier wave communication signal coupling in high voltage transmission lne.
WEE Technology Company Limited - WEE are Capacitors Specialist
1. Material introduction of MMKP82 capacitor.
MMKP82 capacitor is a kind of CBB capacitor, so its main material is also metallized polypropylene film. MMKP82 capacitor uses polypropylene film as the medium,
high-temperature resistant double-sided metallized polypropylene film with excellent self-healing characteristics as the electrode,
and the two ends are sprayed with gold to form a non inductive structure.
It is led out in one direction, and the lead out is made of tinned copper wire (Cu wire) and encapsulated with flame-retardant epoxy resin.
2. Why are MMKP82 capacitors so rare?
Generally, we use CBB81 capacitors in resonant circuits.
However, the biggest inconvenience of this type of capacitor is that it is too large, and it will take up a lot of space to install on the circuit.
Moreover, it is also a powder coated capacitor. Its high temperature resistance and high humidity performance are not good. This problem can be solved by using MMKP82 capacitors.
3. Why is it so difficult to produce MMKP82 capacitors?
The double-sided metallized polypropylene film is not easy to produce, and the manufacture of this capacitor also requires customized special winding machine equipment, which is expensive;
In addition, during the manufacturing process, the operating skills of operators are very strict, the operation efficiency is low, and the overall cost is high.
Therefore, at present, there are not many manufacturers that can produce double-sided metallized polypropylene film capacitors with plastic shells.
However, at present, there are some powerful manufacturers in China that can produce such capacitors, and their performance is much better than CBB81 capacitors.
4. What is the function and application of MMKP82 capacitor?
MMKP82 capacitor has the same function as CBB81 capacitor. At present, it is mainly used in high voltage, high frequency and pulse circuits.
For example, the performance of electric vehicle charging pile power control board, high-power LED driving power supply, mining machine power supply, ultrasonic power supply and other circuits is better than that of CBB81 capacitor.
